Ultra-Slim 12V DC LED Power Supply & One Button Touch Sensor Switch – Integrated Smart Mirror Control System

Description

Enhance your smart home lighting with this all-in-one power and control solution. This system combines a high-efficiency 12V DC power supply with a specialized One Button Touch Sensor Switch, specifically designed for sleek bathroom mirrors and modern cabinetry. It provides seamless power and intuitive touch control for LED strips and anti-fog heating elements through a single, easy-to-conceal interface.

Key Features

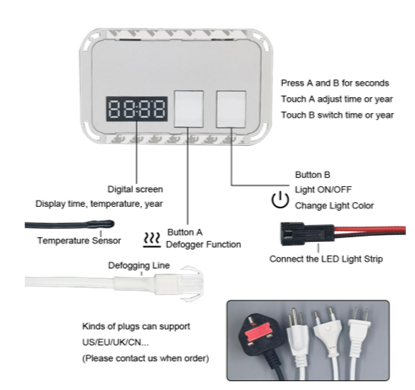

• Integrated One Button Touch Control: Features a dedicated touch sensor switch designed for single-color or three-color LED strips, offering stepless dimming and anti-fog functionality.

• Ultra-Low Profile Design: The power supply features an incredibly slim profile of 1.2cm, making it ideal for mounting behind mirrors or inside narrow furniture channels.

• Intelligent Memory & Dimming: The sensor switch includes brightness memory and supports infinitely dimmable lighting to create the perfect ambiance.

• Wide Sensing Range: Reliable touch operation through mirror, glass, or acrylic surfaces with a sensing range of 1–6mm.

• Universal Voltage Support: The power supply operates on a broad global input range of 90V–250V AC.

• Safety & Compliance: Built to withstand extreme conditions from -40°C to 85°C and certified with CE, RoHS, and SELV standards.

Technical Specifications

Parameter	Power Supply Details	Touch Switch Details
Input Voltage	90V–250V AC	200V–240V AC
Output Voltage	DC 12V	DC 12V
Power Capacity	12W, 24W, 36W, 48W, 60W, 72W	24W / 36W
Sensing Range	N/A	1–6mm
Operating Temp	-40°C to 85°C	-40°C to 75°C
Indicator Light	N/A	White (OFF) / Blue (ON)
Certifications	CE, RoHS, FCC, SELV	CE, RoHS

Mirror Heating Accessory (Optional Accessory):

• Material: PET heating film.

• Function: Removes water mist by heating the mirror surface.

• Application: Specifically designed for bathroom mirrors.

Potential Applications / Use Cases

• Smart Bathroom Mirrors: Combine the slim power supply with the one-button switch for elegant control over LED lighting and defogger pads.

• Modern Kitchen Cabinetry: Install the touch sensor under-cabinet to control task lighting without visible bulky switches.

• Custom Furniture: Perfect for wardrobes or display cases where a hidden, touch-activated lighting system is required.

Package Includes

• 1x Ultra-Slim 12V DC LED Power Supply (Selected Wattage).

• 1x One Button Touch Sensor Switch.

• (Note: Anti-fog heating films are available as separate add-on components).
