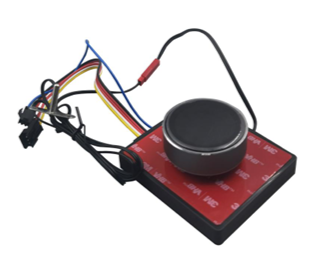

Three Color Touch Rotating Knob Screen Sensor Switch – Precision Smart Mirror Controller

Description

Experience tactile precision with the Three Color Touch Rotating Knob Screen Sensor Switch. This premium controller combines a high-definition digital display with a physical rotating knob, offering an intuitive way to manage lighting, temperature, and anti-fog functions for high-end smart mirrors.

Key Features

• Tactile Knob Control: Features a professional rotating knob for precise adjustment of lighting color and brightness.

• Integrated Digital Display: Built-in screen provides real-time feedback for time and temperature, enhancing the mirror’s utility.

• Triple-Color Management: Optimized for three-color LED strips with stepless dimming and a reliable brightness memory function.

• Anti-Fog Functionality: Includes dedicated control for mirror heating films to maintain a clear surface in humid environments.

• Customizable Indicator: The central interface features a dual-color status light, glowing White when OFF and Blue when ON.

• High-Sensitivity Induction: Operates seamlessly through mirror glass or acrylic with a thickness of 1–6mm.

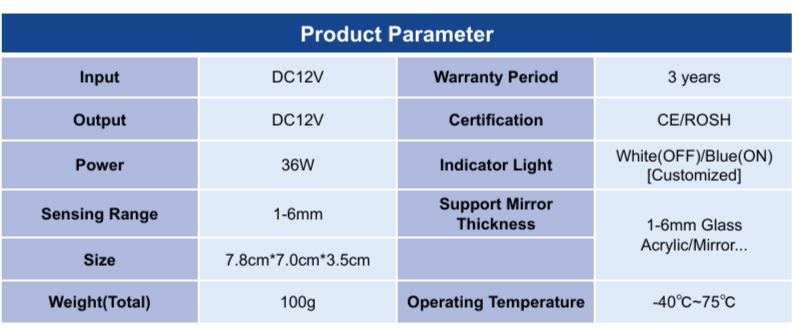

Technical Specifications

• Input/Output Voltage: DC 12V

• Power Capacity: 36W

• Sensing Range: 1 – 6mm

• Operating Temperature: -40°C to 75°C

• Dimensions: 7.8cm x 7.0cm x 3.5cm

• Knob Diameter: 47mm

• Weight (Total): 100g

• Certification: CE / ROHS

Potential Applications / Use Cases

• High-End Designer Mirrors: Perfect for premium bathroom installations where a tactile, luxury feel is desired.

• Professional Makeup Stations: The rotating knob allows for ultra-fine adjustment of lighting temperature to mimic different environments.

• Smart Home Furniture: Can be integrated into luxury cabinetry or wardrobes requiring an aesthetic, screen-based interface.

Package Includes

• 1x Three Color Touch Rotating Knob Screen Sensor Switch

• Integrated Connection Cables for Power, LED Strips, and Sensors

• (Note: 12V DC power supply required for operation)
