Three Buttons Seven Colors Dazzle Touch Sensor Switch – RGB Smart Mirror Controller

Description

Bring vibrant, dynamic lighting to your smart mirror with the Three Buttons Seven Colors Dazzle Touch Sensor Switch. This advanced controller is specifically designed to manage RGB LED strips, allowing you to cycle through seven distinct colors and adjust brightness with precision touch controls.

 Key Features

• Seven-Color RGB Support: Specifically engineered to control seven-color dazzle LED strips for custom atmospheric lighting.

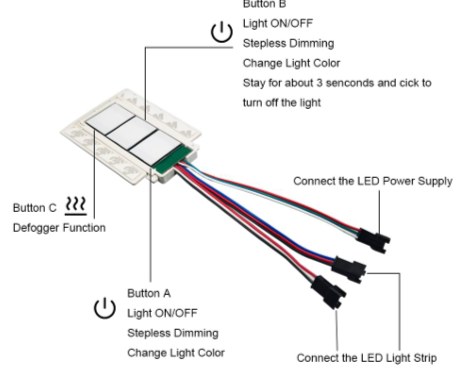

• Triple-Key Interface: Features three dedicated touch zones: Button A and B for lighting/dimming, and Button C for the defogger.

• Stepless Dimming: Provides smooth, continuous brightness adjustment to achieve the perfect lighting level.

• Integrated Defogger Control: Includes a dedicated function to operate mirror heating films, ensuring a clear view in humid conditions.

• Brightness Memory: Automatically retains your last used brightness and color settings for a consistent user experience.

• High-Sensitivity Induction: Reliable touch operation through mirror glass, acrylic, or stone surfaces with a thickness of 1–6mm.

Technical Specifications

• Input Voltage: DC 12V

• Output Voltage: DC 12V

• Power Capacity: 12W – 60W

• Sensing Range: 1 – 6mm

• Indicator Light: White (OFF) / Blue (ON) [Customized]

• Operating Temperature: -40°C to 75°C

• Dimensions: 9.8cm x 6.8cm x 0.8cm

• Weight (Total): 45g

 Potential Applications / Use Cases

• Modern RGB Smart Mirrors: Ideal for bathroom mirrors requiring vibrant color-changing effects and anti-fog functionality.

• Gaming Vanity Stations: Provides high-tech, customizable “dazzle” lighting for gaming-themed dressing areas.

• Commercial Hospitality: Enhances hotel bathroom aesthetics with interactive, multi-color lighting features.

Package Includes

• 1x Three Buttons Seven Colors Dazzle Touch Sensor Switch (Model: YZKJ-F3-PMD)

• Integrated Wiring Harness for Power, RGB LED Strips, and Defogger
