Radar Sensor Switch – High-Sensitivity Motion Detection System

Description

Experience the next level of automation with this advanced power and sensing kit. Combining a high-efficiency 12V DC power supply with a precision Radar Sensor Switch, this system offers superior motion detection that can even work through thin partitions like glass, acrylic, or wood. It is the ideal solution for seamless, invisible lighting control in smart bathrooms, high-end cabinetry, and commercial displays.

Key Features

• Advanced Radar Sensing: Utilizes microwave radar technology to detect movement with higher sensitivity and a wider range than traditional infrared sensors.

• Hidden Installation Capable: The Radar Sensor Switch can detect motion through non-metallic materials, allowing for completely invisible installations behind mirror surfaces or cabinet panels.

• Ultra-Low Profile Power Supply: Featuring a slim 1.2cm chassis, the driver is easily concealed in narrow architectural voids or behind slimline mirrors.

• Universal Input Range: The power supply operates reliably on a broad input range of 90V–250V AC, suitable for global use.

• Industrial Resilience: Engineered to function in demanding environments with a certified working temperature range of -40°C to 85°C.

• Safety Certified: Both components meet rigorous safety standards, including CE, RoHS, FCC, and SELV certifications.

Technical Specifications

Parameter	Power Supply Details	Radar Sensor Switch Details
Input Voltage	90V–250V AC	DC 12V
Output Voltage	DC 12V	DC 12V
Power Capacity	12W, 24W, 36W, 48W, 60W, 72W	Supports up to 60W
Sensing Method	N/A	Microwave Radar
Operating Temp	-40°C to 85°C	-20°C to 50°C
Dimensions	12.7cm * 5cm * 1.2cm	Compact Hidden Design
Certifications	CE, RoHS, FCC, SELV, UL, CCC	CE, RoHS

Mirror Heating Accessory (Optional Accessory):

• Material: PET heating film.

• Function: Removes water mist by heating the mirror surface.

• Application: Designed specifically for smart bathroom mirror defogging.

Potential Applications / Use Cases

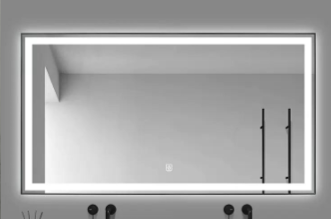

• Invisible Mirror Control: Mount the radar sensor behind the mirror glass for automatic backlighting that activates as you approach.

• Walk-in Wardrobes: High-sensitivity detection that triggers overhead or shelf lighting the moment the door is opened or entry is detected.

• Commercial Signage: Energy-efficient power and control for retail displays that only illuminate when customers are nearby.

Package Includes

• 1x Ultra-Slim 12V DC LED Power Supply (Selected Wattage).

• 1x Radar Sensor Switch.

• (Note: Anti-fog heating films and LED strips are available as optional add-on components).
