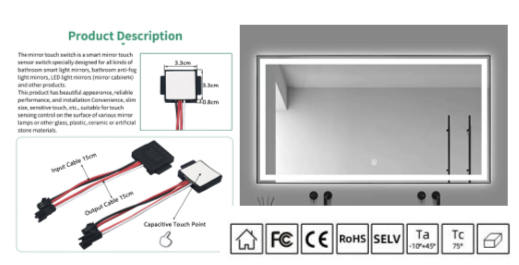

LED Mirror One Button Touch Sensor Switch with Stepless Dimming (DC 3.7V–24V)

Description

Upgrade your smart bathroom mirror with the high-quality One Button Touch Sensor Switch with YZKJ-F1T-OC LED Mirror Touch Sensor Switch is a smart control solution designed for modern bathroom and vanity mirrors. It allows smooth stepless dimming and remembers your last brightness setting. Perfect for LED mirror manufacturers, electricians, and smart home installers.

Key Features

• Stepless Dimming: Smooth brightness control with memory function

• Wide Voltage Compatibility: Supports DC 3.7V–24V

• Touch Through Glass: Works through 1–6mm mirror thickness

• LED Indicator Light: White (OFF) / Blue (ON)

• High Load Capacity: Supports up to 60W LED strips

• Certified Quality: CE & RoHS compliant

Technical Specifications

• Model: YZKJ-F1T-OC

• Input Voltage: DC 3.7V–24V

• Output Voltage: DC 3.7V–24V

• Power Rating: Up to 60W

• Sensing Distance: 1–6mm

• Supported Mirror Thickness: 1–6mm glass/acrylic

• Operating Temperature: -40℃ to 75℃

• Dimensions: 3.3cm × 3.3cm × 0.8cm

• Weight: 15g

• Certification: CE / RoHS

Potential Applications

• LED bathroom mirrors

• Smart vanity mirrors

• Hotel mirror lighting systems

• Smart home mirror projects

• Makeup mirrors with dimming control

Package Includes

• 1x YZKJ-F1T-OC Touch Sensor Switch
  (Note: LED strip and power supply not included)
