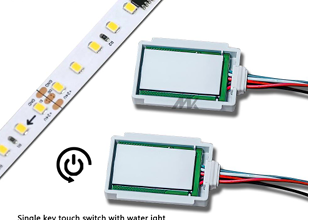

One Button Flowing Water Lamp Touch Sensor Switch – Single Key Smart Mirror Controller

Description

Add a dynamic lighting effect to your smart mirror with the One Button Flowing Water Lamp Touch Sensor Switch. Designed for single-color LED setups, this specialized controller manages “flowing water” lighting effects with a simple touch, making it an ideal choice for modern bathroom mirrors and architectural displays.

Key Features

• Flowing Water Effect: Specifically engineered to control “flowing water” lamp sequences for a premium, high-end visual experience.

• Single Touch Operation: Simple ON/OFF functionality via a short touch on the integrated Button A.

• High-Sensitivity Sensing: Operates reliably through mirror glass, acrylic, or other non-metallic surfaces with a thickness of 1–6mm.

• Compact Slim Profile: Features an ultra-thin 0.8cm design, allowing for easy concealment behind the mirror surface.

• Broad Voltage Compatibility: Supports a versatile input and output range from DC 3.7V to 24V, suitable for various LED strip types.

• Safety Certified: Fully compliant with CE and RoHS standards for secure residential and commercial use.

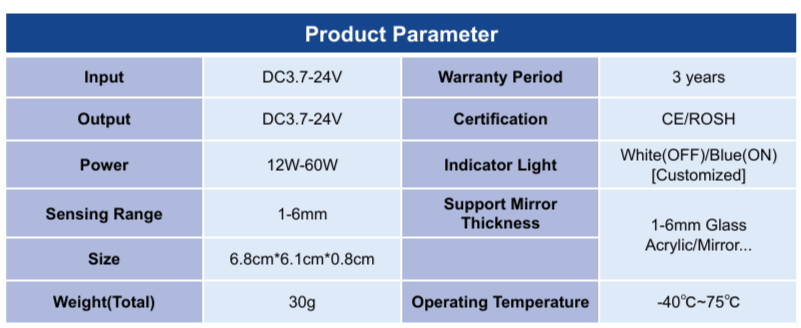

Technical Specifications

• Input/Output Voltage: DC 3.7V – 24V

• Power Capacity: 12W – 60W

• Sensing Range: 1 – 6mm

• Operating Temperature: -40°C to 75°C

• Indicator Light: White (OFF) / Blue (ON) [Customizable]

• Dimensions: 6.8cm x 6.1cm x 0.8cm

• Warranty Period: 3 years

Potential Applications / Use Cases

• Dynamic Smart Mirrors: Perfect for bathroom mirrors featuring single-color white LED “flowing” effects.

• Modern Cabinetry: Install in luxury wardrobes or kitchen cabinets for a sophisticated, touch-activated lighting sequence.

• Retail Displays: Ideal for highlighting products in commercial displays with motion-style lighting.

Package Includes

• 1x One Button Flowing Water Lamp Touch Sensor Switch

• Integrated Wiring Harness for Power and LED Strip Connection
